WELCOME TO BLADE HELICOPTERS!
- BNF Basic Convenience
- Spektrum™ High-Speed Metal Geared Servos
- Carbon Fiber Construction
- Redefined Brushless Power System
- Optimized Servo Geometry
- 20A 4S ESC
- Belt Driven Tail
- High Visibility Canopy
- 6+ Channel Spektrum™ Transmitter
- 4S 450mAh Li-Po Flight Battery with JST connector
- Suitable Li-Po Battery Charger
- (1) Blade® Fusion 180 BNF Basic
- (1) AR6335 6Ch AS3X Nanolite Receiver
- (1) 1310-3600Kv Brushless Motor
- (1) 20A Brushless ESC
- (1) Product Manual

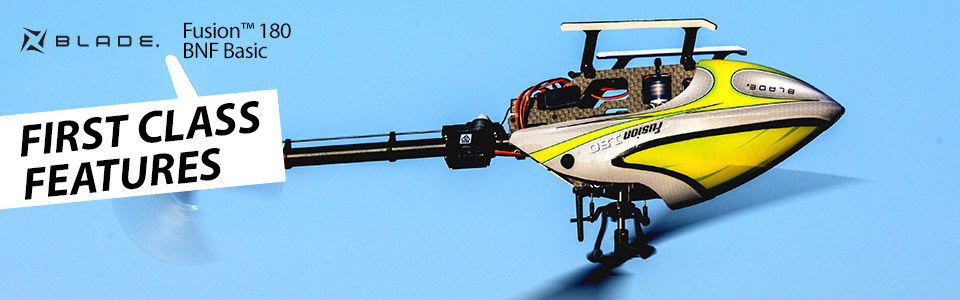

The Blade® Fusion™ 180 is the high performance 3D machine that's ready to tear up the backyard. The Fusion styling revision adds a redeveloped lightweight and extremely rigid carbon fiber main frame. Plus, the new belt-driven tail and newly developed tail case improve tail performance and overall durability. Hosting this new belt is an over-sized tail boom large enough to eliminate the need for boom supports. With this new tail design, the tail servo has moved to a more discrete location mounted to the tail.
Optimized servo geometry greatly reduces mechanical loss and improves control efficiency to the swashplate. Driven by Spektrum™ metal gear servos, pilots are sure to appreciate the precise control. Painted carbon fiber tail fin finishes off the sleek styling of the Fusion redesigned canopy. A new 20 Amp ESC offers improved, precise head speed control for that high performance flight that doesn't lag behind. With BNF® Basic convenience, all you have to do is add a 4S 450mAh battery, bind your 6+ channel Spektrum DSMX® transmitter, and you're off to hit all the hurricanes, tic-tocs, and detonators in your arsenal.
4S Power in a Micro Size
A new HV capable 20 Amp ESC and optimized brushless power system turns the Fusion 180 up to 11! Easily perform all the crowd astounding maneuvers with power and precision.
Optimized Fusion design
The new all carbon fiber and aluminum design takes frame rigidity to another level for a rock solid flight experience. Carbon fiber main gear can take even the hardest of landings. And the reinforced tail boom mount eliminates the need for cross supports for a more streamlined look while staying extremely durable.
Aggressive and Attractive Trim Scheme
The Fusion 180 features a bright and eye catching canopy and matching tail fin that is both attractive and purposeful. The bright color scheme is easy to see when tearing up the sky and is sure to catch the eye of everyone at the flight line.
Spektrum AR6335A Flybarless Controller with AS3X Technology
Cutting-edge Spektrum technology is woven throughout the Fusion from the metal geared micro Spektrum 2070 & 2070T servos with Optimized Servo Geometry paired with a expertly tuned AS3X stabilized flybarless controller.
Belt Driven Tail Rotor
An industry first for the sub 200 mm micro class helis, belt driven tails offer upgraded durability, precision, and reliability. All combined with an optimized power system and pro tuned flybarless controller, the Fusion 180 and throw down anything that a larger model can.
|Channels||6-channel radio (sold separately)|
|Completion Level||Bind-N-Fly Basic|
|Main Frame Material||Carbon|
|Main Blade Material||Plastic|
|Product Height||4.9" (125mm)|
|Product Length||14.6" (370mm)|
|Product Width||2.4" (60mm)|
|Main Motor Type||Brushless|
|Main Rotor Blade Length||7.1" (180mm)|
|Main Rotor Diameter||16.2" (412mm)|
|Main Rotor Head Type||Collective Pitch (CCPM) Flybarless|
|Approximate Flight Time||3-4 minutes|
|Tail Motor Type||None, tail is belt driven|
|Tail Rotor Blade Length||1.4" (36mm)|
|Tail Rotor Diameter||3.9" (100mm)|
|Tail Blade Material||Plastic|
|Skill Level||Level 3|
|Swashplate Type||120 degree CCPM|
