DXS Transmitter with AR410 Receiver

Item No. SPM1010
Brand Logo
5 out of 5 Customer Rating

DXS Transmitter with AR410 Receiver

Item No. SPM1010
$149.99
Need To Complete
1.2V 2100mAh AA NiMH Batteries (4)
SPM1010 SPM9527
1.2V 2100mAh AA NiMH Batteries (4)
In Stock
$14.99
0 Item Selected Items Selected
Neck Strap
SPM1010 SPMP610
Neck Strap
In Stock
$15.99
0 Item Selected Items Selected

In Stock
Selected Store

Product Details

In The Box
  • (1) Spektrum™ DXS 7-channel DSMX® Radio Transmitter
  • (1) USB Serial Adapter
  • (1) Spektrum AR410 DSMX® Full-Range 4-Channel Receiver
  • (1) USB Serial Adapter (Spektrum USB Programmer not included)
  • (1) Product Manual
Needed to Complete
  • (4) AA Alkaline Transmitter Batteries

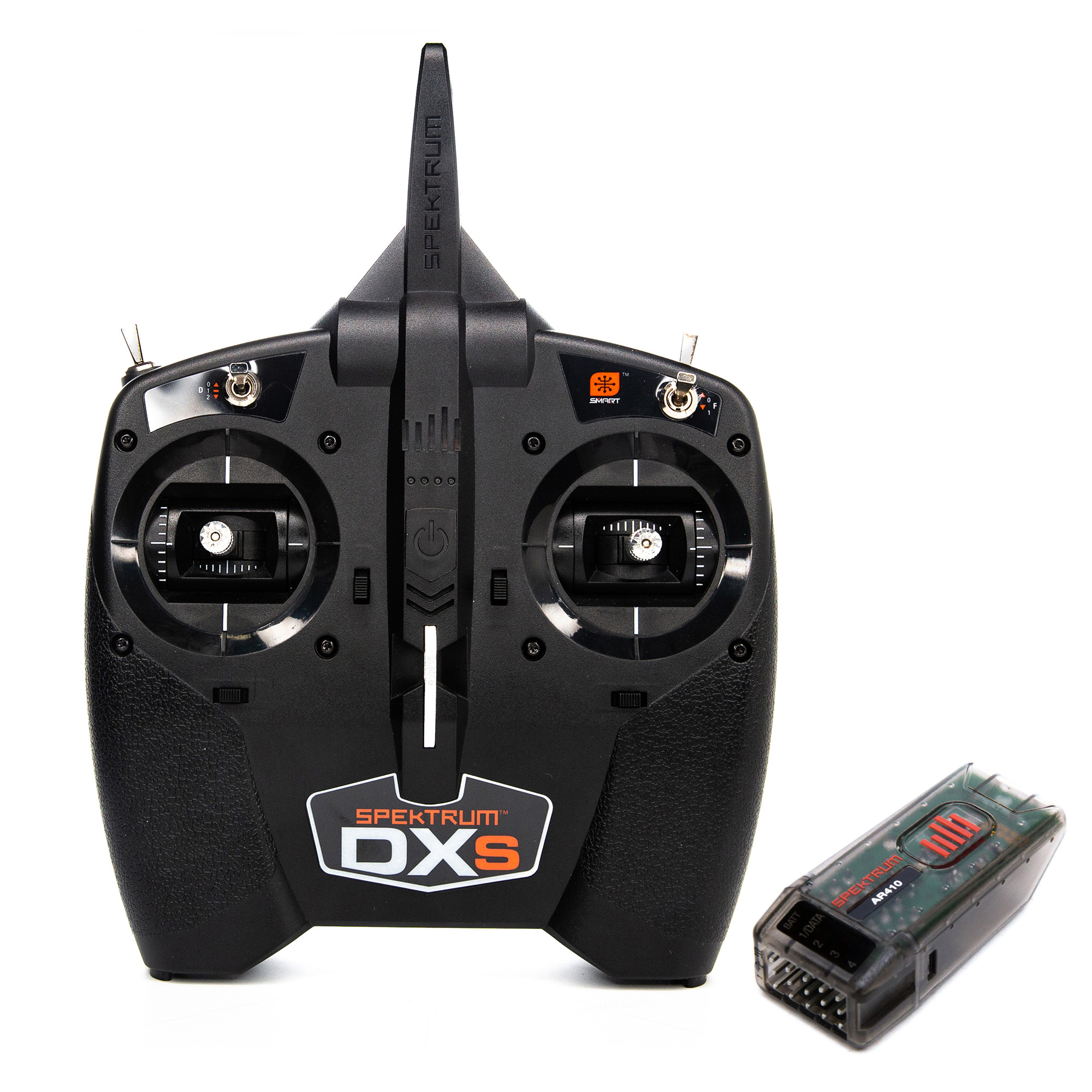

DXS Transmitter with AR410 Receiver

Features

  • Spektrum DXS system includes transmitter plus full-range, 4-channel AR410 DSMX®/DSM2® compatible air receiver
  • Supports Spektrum Smart Technology for Smart ESC and Smart LiPo battery telemetry
  • Transmitter LEDs display Smart LiPo flight battery status for easy voltage monitoring — an industry first!
  • Proven ergonomic design is optimized for comfort and precise, fatigue-free control
  • Offers wireless trainer system capability with optional SRXL2 DSMX® Remote Receiver (available separately)
  • Registration and updates are possible through a PC with optional USB Programming Cable (available separately)
  • Transmitter comes configured to provide the benefits of SAFE® technology with compatible SAFE-equipped receivers
  • DXS transmitter and AR410 receiver are both fully compatible with other Spektrum DSMX® systems
  • DXS is also available as transmitter-only, requiring a compatible receiver

Overview

For any RC flight enthusiast looking to strike the perfect balance between economy and innovative, high-end features, the 7-channel Spektrum DXS radio and AR410 4-channel receiver combine to create the ideal system. It offers full range control, secure DSMX® interference resistance, advanced telemetry capabilities, and proven transmitter ergonomics for fatigue-free flying. The simplified setup of the DXS also gets you into the air faster, with less time needed for preparation and programming.



DSMX<sup>®</sup> TECHNOLOGY

DSMX® TECHNOLOGY

The DXS transmitter is built around proven Spektrum DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX transmitters provide on-channel interference protection that's second to none.



ERGONOMIC DESIGN

ERGONOMIC DESIGN

Weight distribution, switch placement and trim switch positions have been optimized for comfort and fatigue-free control. An integrated handle and neck strap hook are included for easy carrying. Ports are provided in the rear battery compartment for using optional wireless trainer and data port. The SRXL2 DSMX® Remote Receiver (available separately) is required for wireless trainer support. Registration and firmware updating are possible from your PC by downloading the software from the DXS product page at SpektrumRC.com and using the USB Programming Cable (available separately).



AR410 4-CHANNEL SPORT RECEIVER

AR410 4-CHANNEL SPORT RECEIVER

The Spektrum AR410 is a full-range, 4-channel sport air receiver with DSMX®/DSM2® compatibility and a compact footprint that's streamlined to fit in a wide range of models. The AR410 features an internal antenna design for durability and easy installations while maintaining superior full-range performance. In addition, the AR410 offers fly-by range telemetry that includes flight log and receiver battery pack voltage data. Access to telemetry is automatic when used with any telemetry-capable Spektrum transmitter.



FLIGHT PACK VOLTAGE MONITOR

FLIGHT PACK VOLTAGE MONITOR

Get essential flight battery status information at a glance from the DXS transmitter when using it with Smart Avian ESCs and Smart LiPo batteries (sold separately). Four green LEDs on the front of the transmitter communicate the flight battery voltage level. In normal operation with a Smart ESC and Smart battery, only one of the LEDs will glow if the battery is low. Two illuminate to indicate a half-charged battery, three light if the battery is between half and full charge, and all four shine when the flight battery is fully charged.



Trim Programming



Stick Modes



Product Specs

Application
Aircraft
Band
2.4GHz
Bind Method
Bind Button
Channels
7
Completion Level
Transmitter and Reciever
Frame Rate
22ms
Modes
Mode 2
Modulation
DSMX
Programmable
Yes
Range
Full
Rate Positions
2
Resolution
2048
Technology
SAFE
Telemetry
Yes
Transmitter (Tx) Battery Type
4 AA alkaline
Type
Aircraft radio system
Water-Resistant
No
