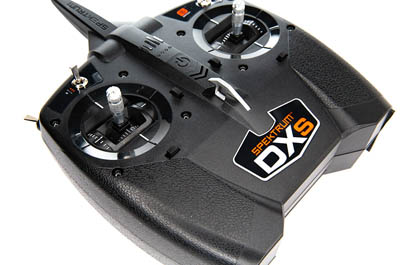

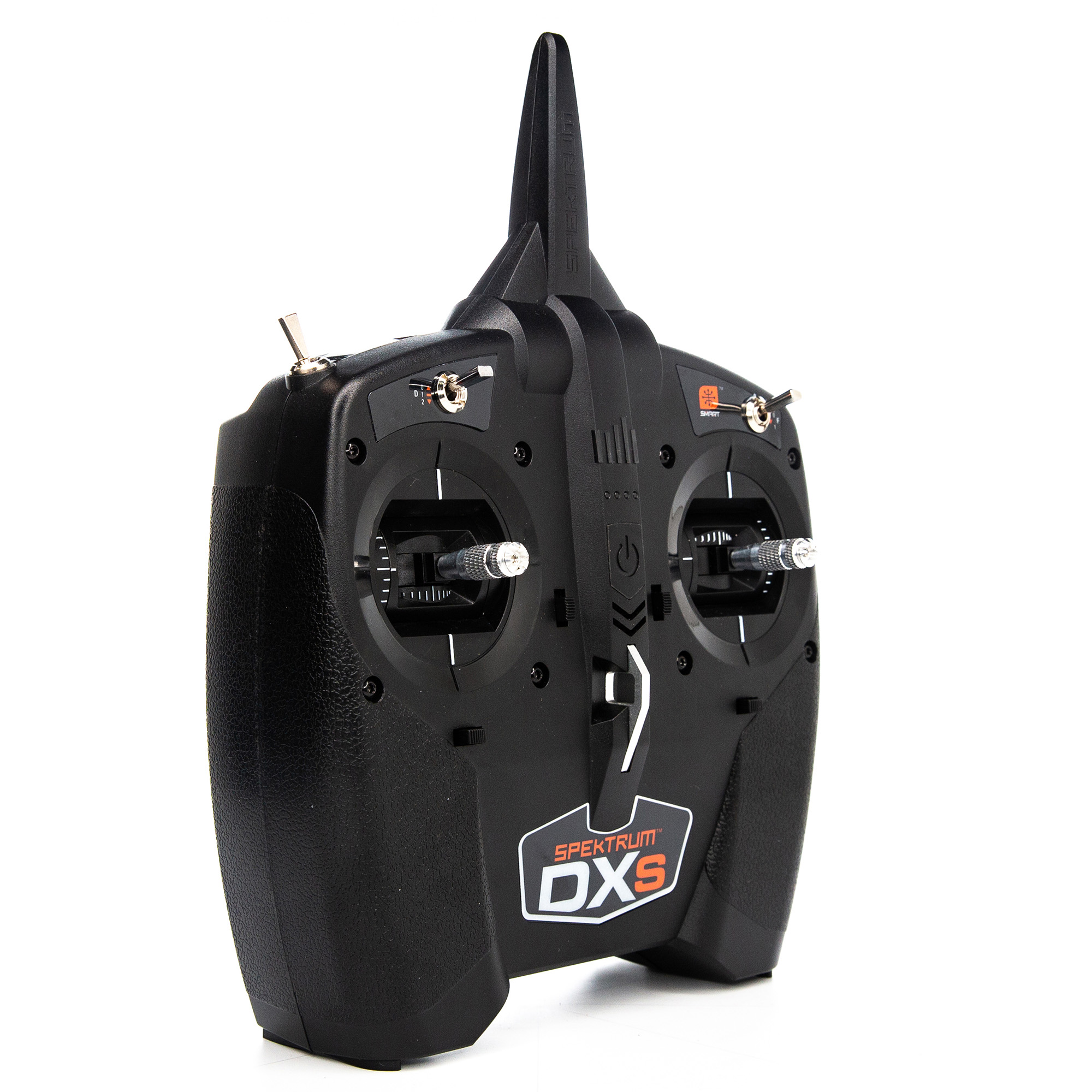

DXS Transmitter Only

Item No. SPMR1010
Brand Logo
3.7 out of 5 Customer Rating

DXS Transmitter Only

Item No. SPMR1010
$114.99
Need To Complete
AR620 DSMX 6-Channel Sport Receiver
SPMR1010 SPMAR620
AR620 DSMX 6-Channel Sport Receiver
In Stock
$49.99
AR6610T DSMX 6-Channel Telemetry Receiver
SPMR1010 SPMAR6610T
AR6610T DSMX 6-Channel Telemetry Receiver
In Stock
$79.99
0 Item Selected Items Selected
Neck Strap
SPMR1010 SPMP610
Neck Strap
In Stock
$15.99
0 Item Selected Items Selected

In Stock
Selected Store

Product Details

In The Box
  • (1) Spektrum™ DXS 7-channel DSMX® Radio Transmitter
  • (1) USB Serial Adapter (Spektrum USB Programmer not included)
  • (1) Product Manual
Needed to Complete
  • (4) AA Alkaline Transmitter Batteries
  • (1) Compatible 4+ Channel DSMX Receiver
Help
Need Help
DXS Transmitter Only

Features

  • Supports Spektrum Smart Technology for Smart ESC and Smart LiPo battery telemetry
  • Transmitter LEDs display Smart LiPo flight battery status for easy voltage monitoring — an industry first!
  • Proven ergonomic design is optimized for comfort and precise, fatigue-free control
  • Offers wireless trainer system capability with optional SRXL2 DSMX® Remote Receiver (available separately)
  • Registration and updates are possible through a PC with optional USB Programming Cable (available separately)
  • Transmitter comes configured to provide the benefits of SAFE® technology with compatible SAFE-equipped receivers
  • DXS is fully compatible with other Spektrum DSMX® systems
  • The DXS is also available as a transmitter and receiver combo, with an AR410 4-Channel Receiver

Overview

For any RC flight enthusiast looking to strike the perfect balance between economy and innovative, high-end features the 7-channel Spektrum DXS radio can combine with a DMSX receiver of your choice to create the ideal system. It offers full range control, secure DSMX® interference resistance, advanced telemetry capabilities, and proven transmitter ergonomics for fatigue-free flying. The simplified setup of the DXS also gets you into the air faster, with less time needed for preparation and programming.



DSMX<sup>®</sup> TECHNOLOGY

DSMX® TECHNOLOGY

The DXS transmitter is built around proven Spektrum DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX transmitters provide on-channel interference protection that's second to none.



ERGONOMIC DESIGN

ERGONOMIC DESIGN

Weight distribution, switch placement and trim switch positions have been optimized for comfort and fatigue-free control. An integrated handle and neck strap hook are included for easy carrying. Ports are provided in the rear battery compartment for using optional wireless trainer and data port. The SRXL2 DSMX® Remote Receiver (available separately) is required for wireless trainer support. Registration and firmware updating are possible from your PC by downloading the software from the DXS product page at SpektrumRC.com and using the USB Programming Cable (available separately).




FLIGHT PACK VOLTAGE MONITOR

FLIGHT PACK VOLTAGE MONITOR

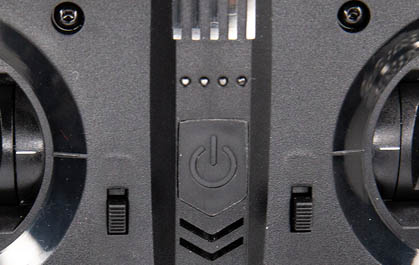

Get essential flight battery status information at a glance from the DXS transmitter when using it with Smart Avian ESCs and Smart LiPo batteries (sold separately). Four green LEDs on the front of the transmitter communicate the flight battery voltage level. In normal operation with a Smart ESC and Smart battery, only one of the LEDs will glow if the battery is low. Two illuminate to indicate a half-charged battery, three light if the battery is between half and full charge, and all four shine when the flight battery is fully charged.



Trim Programming



Stick Modes



Product Specs

Application
Aircraft
Audio
None
Band
2.4GHz
Bind Method
Bind Button
Channels
7
Color Screen
No
Completion Level
Transmitter Only
Frame Rate
22ms, 11ms
Gimbal Type
Potentionometer with bushing
Left / Right Hand Operation
No
Modes
Mode 2
Modulation
DSMX
Operating System
Not Applicable
Programmable
No
Range
Full
Receiver
Sold Separately
Serial Port
No
Technology
SAFE
Telemetry
Yes
Touchscreen
No
Transmitter (Tx) Battery Type
4 AA alkaline
Type
Aircraft radio
Water-Resistant
No
WiFi
No
