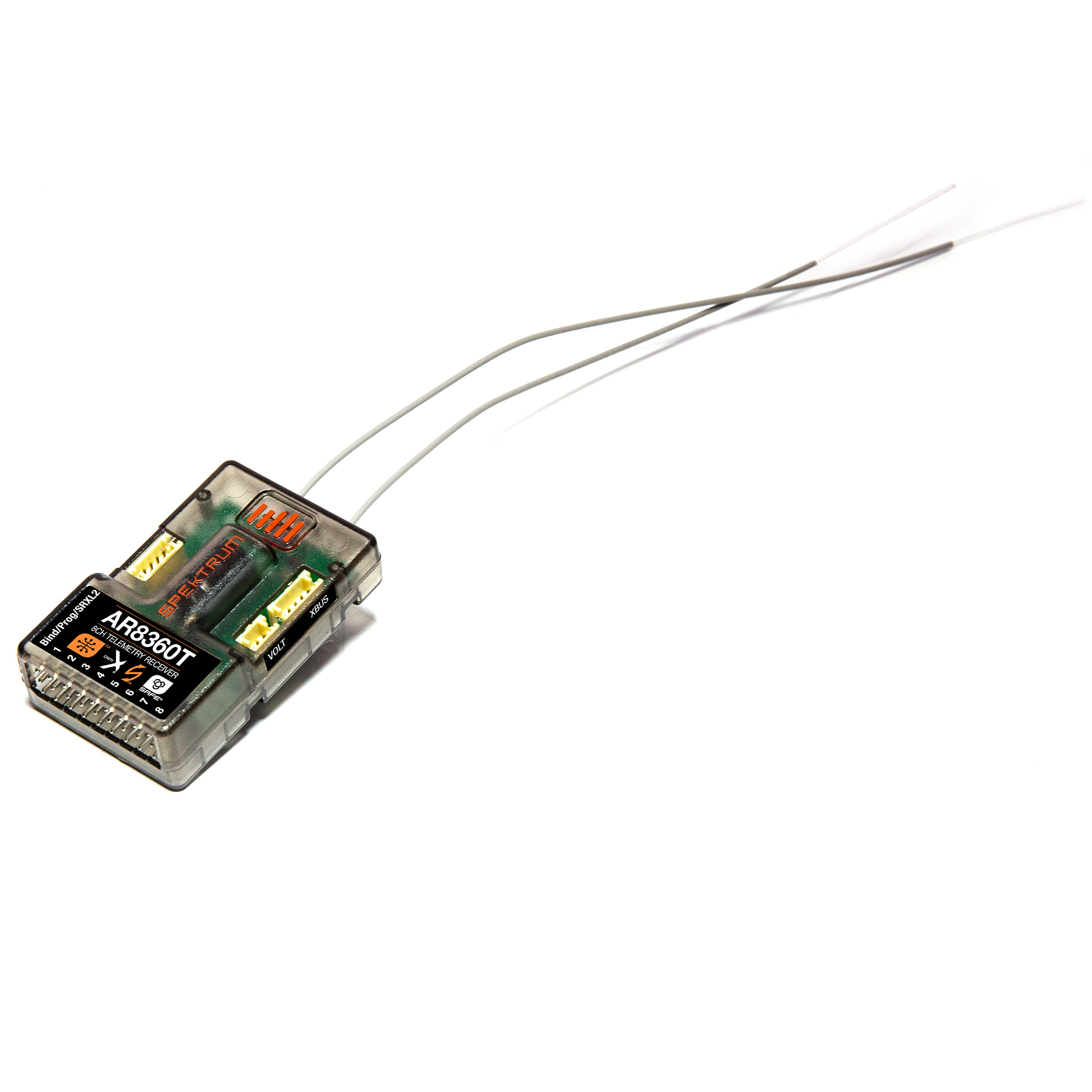

AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver

Item No. SPMAR8360T
Discontinued
Brand Logo
5 out of 5 Customer Rating

AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver

Item No. SPMAR8360T
This Item is No Longer Available
Selected Store
AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
SPM-1033
View Alternate Product Details

Product Details

Key Features
  • Compatible with all Spektrum™ DSM2 and DSMX transmitters
  • Built in AS3X Stabilization System with SAFE flight envelope protection
  • Compact footprint fits most parkflyer size, sport class and giant scale models
  • Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
  • Bind button allows for easy binding and eliminates the use of bind plug
In The Box
  • (1) AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver
  • (1) Product Manual
Needed to Complete
  • (1) Spektrum Telemetry Capable Transmitter
AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver

Overview

The Spektrum AR8360T 8 Channel AS3X/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T is a full range 8 channel receiver with built in AS3X stabilization, which counters the effects of wind, turbulence and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limit on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want

The AR8360T features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4751T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe technology and Hold Last as well as preset failsafe types set through forward programming.

Please Note: The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.

Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters

*Please note – Using this receiver in turbine powered aircraft models is not recommended

Features

  • Compatible with all Spektrum DSM2 and DSMX transmitters
  • Built in AS3X Stabilization System with SAFE flight envelope protection
  • AS3X and SAFE set up through forward programming directly from your Spektrum transmitter*
  • Compact footprint fits most parkflyer size, sport class and giant scale models
  • Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
  • Bind button allows for easy binding and eliminates the use of bind plug
  • Two external antennas will ensure secure RF coverage from all angles of the aircraft
  • Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
  • Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires.
  • End pin output pins for easy and compact installation
  • Forward Programming capable for setting individual failsafe parameters per channel and more
AS3X TECHNOLOGY
AS3X® TECHNOLOGY (3-AXIS STABILIZATION)

Exclusive Spektrum AS3X® technology enhances flight stability by countering the effects of wind, turbulence, and other outside forces to help your aircraft fly smoothly and with precision. You'll feel like you're piloting an expertly tuned model that performs exactly as you want.

FORWARD PROGRAMMING
FORWARD PROGRAMMING

You can configure the AR8360T receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

SAFE TECHNOLOGY
SAFE® TECHNOLOGY

SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

SAFE PANIC RECOVERY
SAFE® PANIC RECOVERY

Sometimes called a bailout mode, Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. It is usually assigned to a momentary button.

SMART TELEMETRY
SMART TELEMETRY

To enjoy the full benefits of Smart technology, use the AR8360T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time. For more information on Smart Technology please visit our Spektrum Smart Technology page.

INTEGRATED BAROMETER
INTEGRATED BAROMETER

The Spektrum AR8360T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

AR637T Setup Series

Product Specs

Antenna Length
6.1" (155 mm)
Application
Airplane, Sailplane
Band
2.4GHz
Bind Method
Bind Button
Channels
8
Failsafe
Yes
Forward Programming
Yes
Input Voltage
3.5 - 9V
Integrated Variometer
Yes
Modulation
DSMX
Product Application
Air, Sailplanes
Product Height
0.59" (15 mm)
Product Length
1.92" (49 mm)
Product Weight
0.56oz (16g)
Product Width
1.2" (30 mm)
Range
Full
Remote Receiver Ports
1
Resolution
2048
Serial Out
SRXL2
Technology
SAFE / AS3X
Telemetry
Yes
Telemetry Range
Full
