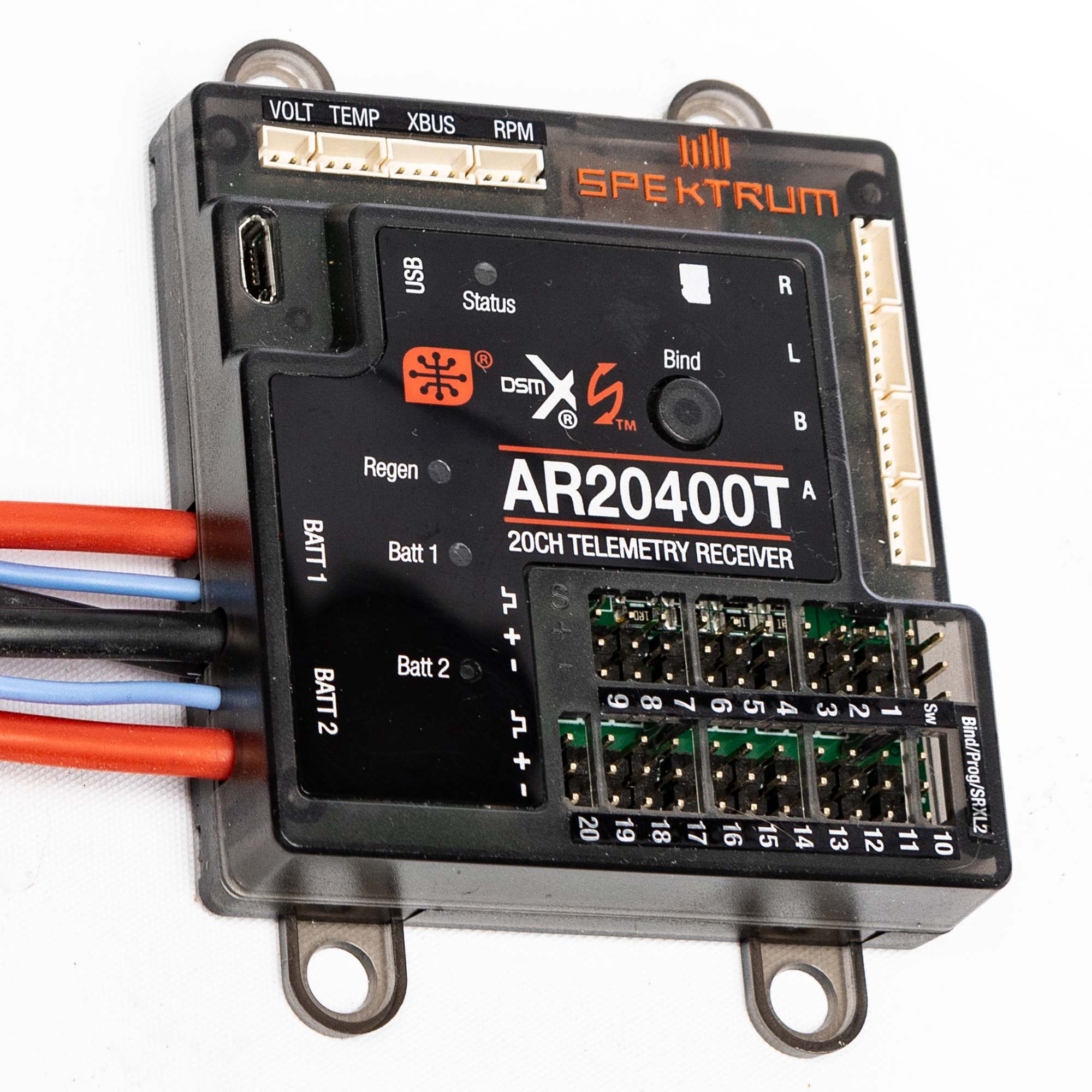

AR20400T 20-Channel PowerSafe Telemetry Receiver

Item No. SPMAR20400T
Brand Logo
3.8 out of 5 Customer Rating

AR20400T 20-Channel PowerSafe Telemetry Receiver

Item No. SPMAR20400T
$379.99
Need To Complete
7.4V 2000mAh 2S LiPo Receiver Battery: Universal Receiver, EC3
SPMAR20400T SPMB2000LPRX
7.4V 2000mAh 2S LiPo Receiver Battery: Universal Receiver, EC3
In Stock
$45.99
6.6V 2200mAh 2S LiFe Receiver Battery: Universal Receiver, EC3
SPMAR20400T SPMB2200LFRX
6.6V 2200mAh 2S LiFe Receiver Battery: Universal Receiver, EC3
In Stock
$34.99
6.6V 3000mAh 2S LiFe Receiver Battery: Universal Receiver, EC3
SPMAR20400T SPMB3000LFRX
6.6V 3000mAh 2S LiFe Receiver Battery: Universal Receiver, EC3
In Stock
$49.99
6.6V 4000mAh 2S LiFe Receiver Battery: Universal Receiver, EC3
SPMAR20400T SPMB4000LFRX
6.6V 4000mAh 2S LiFe Receiver Battery: Universal Receiver, EC3
Next Shipment January 2025
$64.99
7.4V 4000mAh 2S LiPo Receiver Battery: Universal Receiver, EC3
SPMAR20400T SPMB4000LPRX
7.4V 4000mAh 2S LiPo Receiver Battery: Universal Receiver, EC3
In Stock
$86.99
7.4V 2000mAh 2S 15C Smart LiPo Receiver Battery: Universal Receiver, IC3
SPMAR20400T SPMX20002SRX
7.4V 2000mAh 2S 15C Smart LiPo Receiver Battery: Universal Receiver, IC3
In Stock
$29.99
6.6V 2200mAh 2S 15C Smart LiFe Receiver Battery: Universal Receiver, IC3
SPMAR20400T SPMX22002SLFRX
6.6V 2200mAh 2S 15C Smart LiFe Receiver Battery: Universal Receiver, IC3
In Stock
$32.99
7.4V 4000mAh 2S 15C Smart LiPo Receiver Battery: Universal Receiver, IC3
SPMAR20400T SPMX40002SRX
7.4V 4000mAh 2S 15C Smart LiPo Receiver Battery: Universal Receiver, IC3
In Stock
$46.99
7.4V 2700mAh 2S 15C Smart G2 Receiver LiPo Battery: IC3
SPMAR20400T SPMX-1056
7.4V 2700mAh 2S 15C Smart G2 Receiver LiPo Battery: IC3
In Stock
$34.99
0 Item Selected Items Selected
Telemetry Link X-Bus, Spektrum Compatible
SPMAR20400T CSE010014800
Telemetry Link X-Bus, Spektrum Compatible
In Stock
$53.95
GPS Telemetry Sensor
SPMAR20400T SPMA95871
GPS Telemetry Sensor
In Stock
$59.99
0 Item Selected Items Selected
iGyro 3xtra
SPMAR20400T PBS3620
iGyro 3xtra
In Stock
$242.03 Price reduced from $268.92 to
0 Item Selected Items Selected
SRXL2 Remote Receiver Extension, 6-Inch
SPMAR20400T SPM9100
SRXL2 Remote Receiver Extension, 6-Inch
In Stock
$11.99
SRXL2 Remote Receiver Extension, 9-Inch
SPMAR20400T SPM9101
SRXL2 Remote Receiver Extension, 9-Inch
In Stock
$11.99
SRXL2 Remote Receiver Extension, 12-Inch
SPMAR20400T SPM9102
SRXL2 Remote Receiver Extension, 12-Inch
In Stock
$11.99
SRXL2 Remote Receiver Extension, 24-Inch
SPMAR20400T SPM9103
SRXL2 Remote Receiver Extension, 24-Inch
In Stock
$11.99
SRXL2 Remote Receiver Extension, 36-Inch
SPMAR20400T SPM9104
SRXL2 Remote Receiver Extension, 36-Inch
In Stock
$11.99
Optical Ignition Kill Switch
SPMAR20400T SPMA100
Optical Ignition Kill Switch
In Stock
$19.99
Servo Extension Lead: 12" Heavy-Duty
SPMAR20400T SPMA3003
Servo Extension Lead: 12" Heavy-Duty
In Stock
$7.99
Servo Extension Lead: 24" Heavy-Duty
SPMAR20400T SPMA3005
Servo Extension Lead: 24" Heavy-Duty
In Stock
$8.99
X-Bus Extension 6-inch
SPMAR20400T SPMA9579
X-Bus Extension 6-inch
In Stock
$8.99
X-Bus Extension 12-inch
SPMAR20400T SPMA9580
X-Bus Extension 12-inch
In Stock
$8.99
X-Bus Extension 24-inch
SPMAR20400T SPMA9581
X-Bus Extension 24-inch
In Stock
$9.99
6" Extension: IC3 Battery/IC3 Device
SPMAR20400T SPMXCA319
6" Extension: IC3 Battery/IC3 Device
In Stock
$10.99
0 Item Selected Items Selected

In Stock
Selected Store

Product Details

Key Features
  • Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power-hungry aircraft and high-current servo applications drawing up to 35A (50A max burst)
  • Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
  • Micro USB port for easy product registration and firmware updates
  • 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
  • Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
In The Box
  • (1) AR20400T 20 Channel PowerSafe Receiver
  • (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
  • (3) SPM9747 SRXL2 DSMX Remote Receivers
  • (1) 9" SRXL2 Remote Receiver Extension
  • (1) 12" SRXL2 Remote Receiver Extension
  • (1) 24" SRXL2 Remote Receiver Extension
  • (1) 36" SRXL2 Remote Receiver Extension
  • (2) Battery IC3 Connectors
  • (2) Charge Receptacles
  • (1) Aircraft Telemetry Volt Sensor
  • (1) Soft Switch
  • (1) Instruction Manual
AR20400T 20-Channel PowerSafe Telemetry Receiver

Features

  • Patented PowerSafe™ redundancy system with dual 13 AWG battery leads with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
  • Forward programmable for easy adjustments to failsafe settings, servo frame rate settings and more
  • Micro USB port for easy product registration and firmware updates
  • 12V capable for use with 12 volt servo applications (must be activated via Forward Programming)
  • Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
  • Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
  • Integrated status LED provides helpful information during start up, warnings and mode indicators
  • SRXL2 connectivity for easy, one wire connection to supported devices
  • Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
  • Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
  • Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
  • Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted.
  • Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
  • Capable of high-speed 11ms frame rates
  • Binding is easier than ever with four options to initiate the bind process
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
  • Compatible with all Spektrum DSM2 and DSMX transmitters
  • Not compatible with Spektrum AS3000 Stabilization Module
  • Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)

Overview

The Spektrum™ AR20400T PowerSafe™ receiver is a feature-packed 20 channel receiver with integrated full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current such as those found on giant-scale airplanes and jet models. They feature a robust power bus designed to manage high-current loads, as well as dual 13AWG battery input leads with IC3™ connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the receiver without the need for a separate power distribution system.

If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR20400T will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 4 SRXL2 remote receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping insure a solid connection between you and your aircraft. As an added measure of safety, the Spektrum designed the AR20400T receiver with a proprietary soft switch. Allowing servo current to be routed around the switch, so, should the switch fail for any reason, power to the system will not be interrupted.

A ground-breaking feature on the AR20400T PowerSafe Receiver is the built-in receiver battery energy sensors. Giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery.

Each come with built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options.

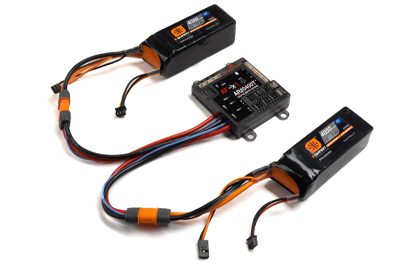

Patented PowerSafe™ Redundancy System
Patented PowerSafe™ Redundancy System

The Spektrum™ AR20400T is the ultimate solution for powering high-current draw radio systems. In aircraft with multiple high-current draw servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between both connected receiver batteries with true dual battery redundancy. Each battery is isolated and if one fails/shorts the other seamlessly takes over.

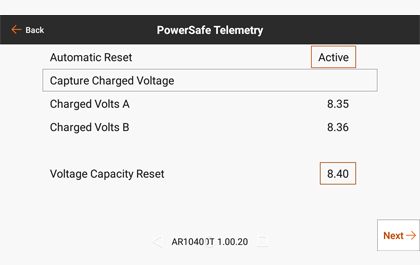

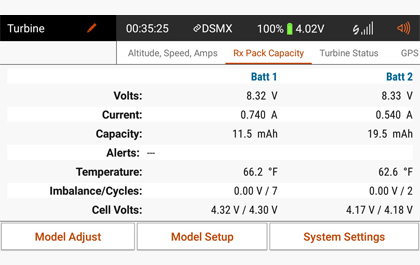

Innovative Battery Capacity Monitor
Innovative Battery Capacity Monitor

The PowerSafe receivers feature dual battery capacity monitoring through telemetry when used with Spektrum AirWare™ transmitters. Activate the Auto Config function on the telemetry page in your transmitter to display the capacity consumed by the receiver. The capacity used is stored flight to flight and adds until reset. The capacity can be automatically reset when the battery is charged, allowing easy battery capacity monitoring.

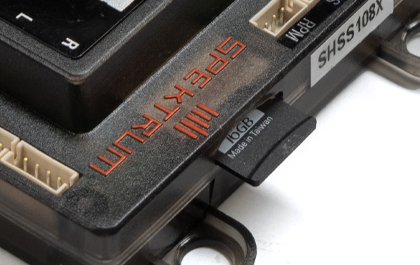

Integrated “Black Box” Telemetry Logging
Integrated “Black Box” Telemetry Logging

When a micro SD card is inserted into the receiver, during operation, flight information will be logged onto a file on the card including flight log data, battery status and other telemetry data stored over time. If not deleted, older data logs recorded will be deleted, keeping the most recent logs. This can be a handy tool to review flight data over time which can be helpful for diagnosis of performance.



Forward Programmable
Forward Programmable

You can configure the AR20400T receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

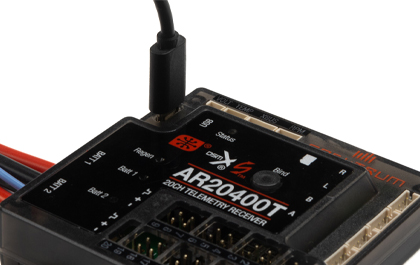

Micro USB Port
Micro USB Port

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application.



Integrated Barometer
Integrated Barometer

The Spektrum™ AR20400T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

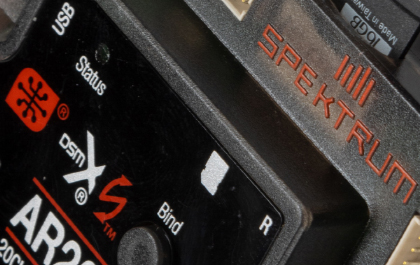

Status LEDs
Status LEDs

The Status LED will give information about the status of the receiver and give warning codes if there is an issue or condition detected: Differentiate codes/modes by flashing count.

  • White Blinking/Breathing - Initializing, not ready to fly
  • Red - Failure, failure where you can't fly. Check power or RF.
  • Two blinks - 3S Power Detected/Protection engaged
  • One blink - No remote detected in port A or not enough remotes detected, need at least 2 remotes connected and one must be in port A.
  • Solid Blue - Ready (with recording). Ready to fly recording with SD
  • Solid Green - Ready (without recording). Ready to fly, not recording to an SD card.
  •

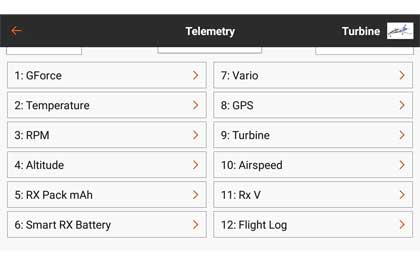

    Expansive Telemetry Options
    Expansive Telemetry Options

    In addition to the integrated telemetry sensors, the AR20400T supports an expansive list of Spektrum telemetry sensors and 3rd party telemetry accessories. Easily add powerful telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.



    Available for PC Download button

    Product Specs

    Application
    Air
    Band
    2.4GHz
    Bind Method
    Bind Button
    Channels
    20
    Data Port
    No
    Failsafe
    Yes
    Flight Log Compatible
    No
    Forward Programming
    Yes
    Input Voltage
    3.5-12.6V
    Integrated Variometer
    Yes
    Modulation
    DSMX/DSM2
    Product Application
    Air, Sailplanes
    Product Height
    0.71" (18 mm)
    Product Length
    2.71" (69 mm)
    Product Weight
    3.0 oz (86g)
    Product Width
    2.56" (65 mm)
    Range
    Full
    Remote Receiver Ports
    4
    Resolution
    2048
    Serial Out
    SRXL2
    Technology
    Standard
    Telemetry
    Yes
    Telemetry Range
    Full
